Elevating Work Platforms - 13m - 17m - 23m

These spider, tracked, elevating work platforms offer incredible versatility, safety and control. With three sizes available you can be confident that we can meet your needs. We can even supply an operator (trained, qualified and competent), leaving you free to do your job while we ensure you get maximum use and safety from the equipment.

Features common to all sizes:

  • Rubber tracked
  • Electric options
  • Spider stabilisers
  • Indoors and outdoors
  • Small footprint
  • Set up on uneven surfaces

Download Specs

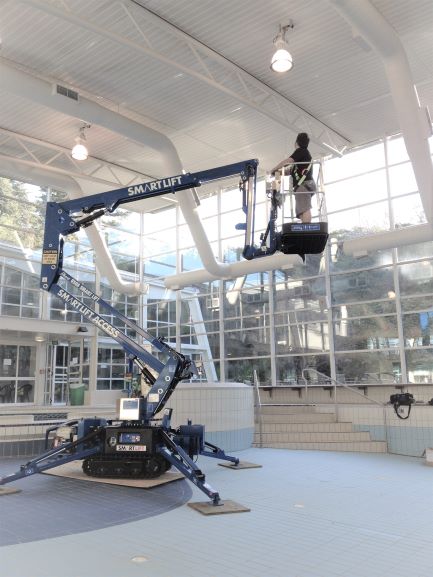

Traccess 135

Max Working Height 13.5m
Max Working Radius 6.5m
Max SWL 200kg
2 Person Basket 1300 x 700 mm
Travel/Tracking Dimensions 3760mm x 780mm x 2000mm high
Total Weight 1600kg

Download Specs

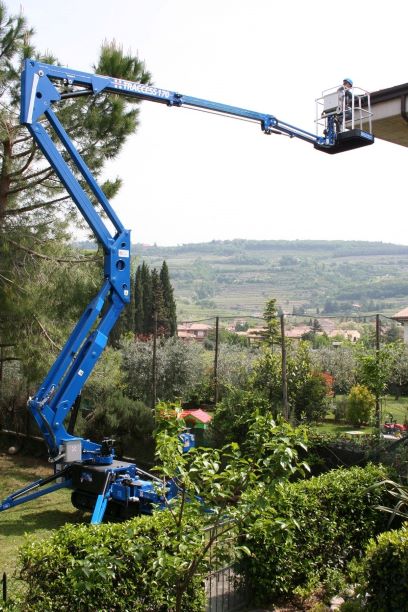

Traccess 170

Max Working Height 17m
Max Working Radius 7.5m
Max SWL 200kg
2 Person Basket 1300 x 700 mm
Travel/Tracking Dimensions 4250 x 800 x 2000 mm
Total Weight 2050kg

Also features a rotating basket and expanding track width.

Download Specs

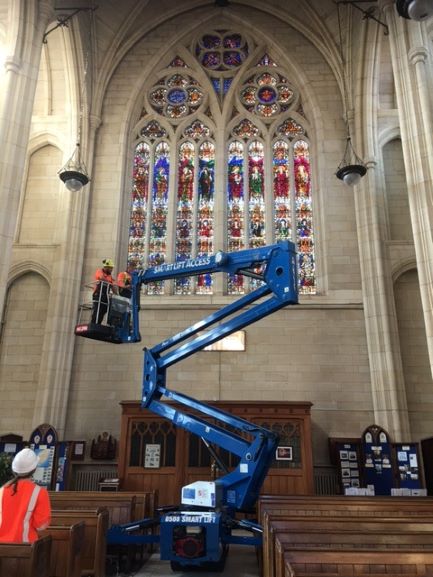

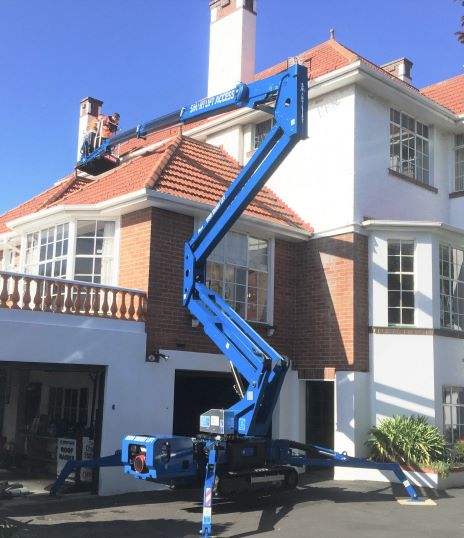

Traccess 230

Max Working Height 23m
Max Working Radius 12m
Max SWL 200kg
2 Person Basket 1300 x 700 mm
Travel/Tracking Dimensions 5285 x 780mm x 2000 mm
Total Weight 2900kg

Also features a rotating basket and expanding track width.

One Person Basket available

Download Specs
